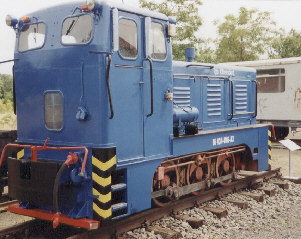

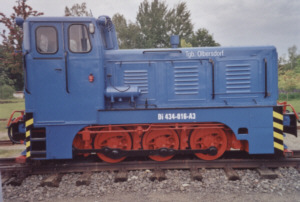

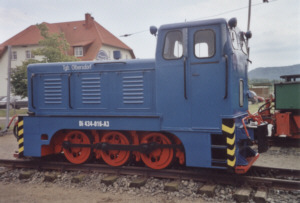

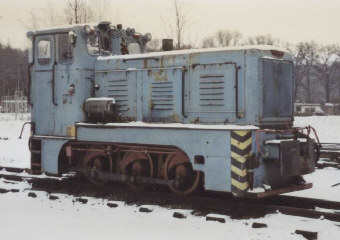

Di 434-016-A3
![](images/el3/vehicles/el3_bild_06.jpg)
![](images/el3/vehicles/el3_bild_07.jpg)
![](images/el3/vehicles/el3_bild_10.jpg)
![](images/el3/vehicles/el3_bild_11.jpg)
We hit the nail on the head with the headline "Return home to the old field" in the info booklet no.20. Because in March of the year 1993 was Di 434-016-A3 from the parent company in Brieske-Senftenberg for the refurbishment in Tgb. Olbersdorf transferred here. So the last original in Olbersdorfer Territory. From 1997 to 10.5.2001 this diesel locomotive was installed at the Sachsenmodell GmbH. Since this date Di 434-016-A3 is back in the former Mining site. In the summer of 2002, the diesel locomotive was again made feasible, that is, the engine is running great and the "day of the miner" we could drive back and forth a bit. With its built-in compressor, it also provides the necessary compressed air, which we need for the El 3 4-98 and also for tilting the overburden cart.
What this designation means: Di 434-016-A3 -> Di - diesel engine, 434 - current company number, 016 - weight in t, A3 - gauge 900mm and driven axles.
Owner | IV Zittauer Schmalspurbahnen e. V. |
Carriage number DR (1951/58-heute) | Di 434-016-A3 |
Year of manufacture | 1973 |
Manufacture | Fabriknr. 250551 |
Gauge | 900 |
Weight | ca. 18 t |
Axes | C |
Length | 5,34 m |
Height | 2,73 m |
Width | 1,84 m |
Vmax | 50 Km/h |
Engine | Anfahrzugkraft 4900 kp, Zugkraft bei 24 km/h: 700 kp |
